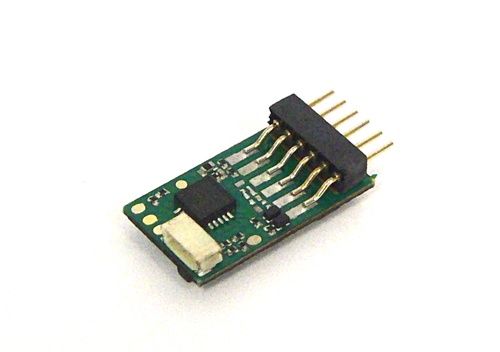

Piko 46400 - PIKO SmartDecoder 4.1 6-pol.

PIKO SmartDecoder 4.1 6-pol.
The PIKO SmartDecoder 4.1 6pol. is a universally applicable digital decoder of the latest generation generation with multiple light outputs and a 0.8 A motor control.The PIKO SmartDecoder 4.1 masters the data formatsDCC with Rail-ComPlus®, Motorola®and Selectrix® and can also be used on analog layouts.analog layouts. The decoder recognizes the respective operating mode automatically.

Features

- Fully automatic detection of the operating modes
- Operating modes DCC, MM, Selectrix®, DC and AC
- Motor current duration 0.8 A
- Motor peak current 2.0 A
- Total current function outputs 0.4 A
- MicroSUSI
- Programmable motor characteristics
- Brake distance modes
- Short circuit and over temperature protection
- Dimensions: 15 x 8.6 x 3.9 mm

replaces the 46210" decoder
